Page: 1
/ 6
Total 30 questions
Service Consumer A sends a request message with an authentication token to Service A, but before the message reaches Service A, it is intercepted by Service Agent A (1). Service
Agent A validates the security credentials and also validates whether the message is
- A. The parts of Security Policy A and Security Policy SIB that are redundant with Security Policy SIA are removed so that there is no overlap among these three security policies. A new service agent is introduced into Service Inventory A to validate compliance to the new Security Policy SIA prior to messages being validated by Service Agent A. Another new service agent is introduced into Service Inventory B to validate compliance to the new Security Policy SIA prior to messages being validated by S
- B. The parts of Security Policy A that are redundant with Security Policy SIA are removed so that there is no overlap between these two security policies. A new service agent is introduced into Service Inventory A to validate compliance to the new Security Policy SIA prior to messages being validated by Service Agent A.
- C. The parts of Security Policy A and Security Policy SIB that are redundant with Security Policy SIA are removed so that there is no overlap among these three security policies. Service Agent A is updated so that it can validate messages for compliance with both Security Policy A and Security Policy SIA. Service Agent B is updated so that it can validate messages for compliance with both Security Policy SIA and Security Policy SIB. Service Agent C remains unchanged.
- D. Due to the amount of overlap among Security Policy A, Security Policy SIA, and Security Policy SIB, the Policy Centralization pattern cannot be correctly applied without changing the message exchange requirements of the service composition.
Answer : B

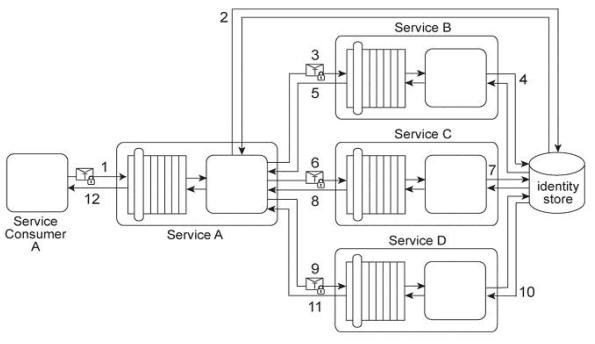

Service Consumer A sends a request message with a Username token to Service A (1).
Service B authenticates the request by verifying the security credentials from the
Username token with a shared identity store (2), To process Service Consumer A's request message. Service A must use Services B, C, and D. Each of these three services also requires the Username token (3. 6, 9) in order to authenticate Service Consumer A by using the same shared identity store (4, 7, 10). Upon each successful authentication, each of the three services (B, C, and D) issues a response message back to Service A (5, 8, 11).
Upon receiving and processing the data in all three response messages, Service A sends its own response message to Service Consumer A (12).
There are plans implement a single sign-on security mechanism in this service composition architecture. The service contracts for Services A, C, and D can be modified with minimal impact in order to provide support for the additional messaging requirements of the single sign-on mechanism. However, Service B's service contract is tightly coupled to its implementation and, as a result, this type of change to its service contract is not possible as it would require too many modifications to the underlying service implementation.
Given the fact that Service B's service contract cannot be changed to support single sign- on, how can a single sign-on mechanism still be implemented across all services?
- A. Apply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token on behalf of Service Consumer A, and forwards this token to Services C and D. Create a new utility service is positioned between Service A and Service B. This utility service perform a conversion of the SAML token to a Username token, and then forwards the Username token to Service B so that Service B can still perform authentication of incoming requests using its own security me
- B. Apply the Brokered Authentication pattern to establish Service A as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to other services. Apply the Trusted Subsystem pattern to create a utility service that acts as a trusted subsystem for Service B. This utility service is able to perform authentication using the SAML token from Service A and can then generate a Username token by embedding its own credentials when accessing Service B.
- C. Apply the Brokered Authentication pattern so that Service A acts as an authentication broker that issues a SAML token for Service Consumer A and forwards Service Consumer A's token to Services C and D. Create a second service contract for Service B that supports single sign-on. This way, Service B can still perform authentication of incoming requests using the old service contract while allowing for the processing of SAML tokens using the new service contract.
- D. Replace the Username tokens with X.509 digital certificates. This allows for the single sign-on mechanism to be implemented without requiring changes to any of the service contracts.
Answer : A
Service Consumer A sends a request message with an authentication token to Service A, but before the message reaches Service A, it is intercepted by Service Agent A (1). Service
Agent A validates the security credentials and also validates whether the message is
- A. In order for Security Policy A to be centralized so that it can be shared by Service A and the new perimeter service, messages sent to the perimeter service from services in Service Inventory B will need to continue complying with Security Policy A, even if it requires that the messages contain content that does not relate to accessing the legacy system. In order to centralize Security Policy B it will need to be combined with Security Policy SIB, which means that the functionality within Servic
- B. A single centralized security policy can be created by combining Security Policy A, Security Policy B. and Security Policy SIB into a single security policy that is shared by services in both Service Inventory A and Service Inventory B. This means that the new perimeter service can share the same new security policy with Service A. This further simplifies message exchange processing because request messages sent by services in Service Inventory B to the new perimeter service need to comply to th
- C. The parts of Security Policy A that are required for access to the new perimeter service need to be removed and placed into a new security policy that is shared by Service A and the perimeter service. Messages sent by services accessing the perimeter service from Service Inventory B will need to be compliant with the new security policy. Because the perimeter service is dedicated to message exchange with services from Service Inventory B, response messages sent by the perimeter service can be de
- D. Due to the amount of overlap among Security Policy A, Security Policy B, and Security Policy SIB, the Policy Centralization pattern cannot be correctly applied to enable the described message exchange between the perimeter service in Service Inventory A and services in Service Inventory B.
Answer : C
Service A provides a data retrieval capability that can be used by a range of service
- A. Apply the Data Origin Authentication and the Data Confidentiality patterns to ensure that request and response messages exchanged between Service A and Services B. C, and D are digitally signed and encrypted. This guarantees message integrity and confidentiality.
- B. Apply the Data Origin Authentication pattern to verily that request and response messages exchanged by Service Consumer A and Service A and exchanged by Service A and Services B, C, and D originated from the claimed sources and have not been altered prior to transmission. Also, enhance the Service A architecture so that all messages sent to its service consumers are logged.
- C. Apply the Brokered Authentication pattern to send the security credentials of Service Consumer A to Services B, C, and D. Service A can carry out the brokered authentication logic and therefore act as the intermediary security broker. Upon receiving Service Consumer A's request message, Service A can further verify the credentials against an external certificate authority, if the request is authenticated. Service A can create a signed SAML assertion containing Service Consumer A's credentials an
- D. The service contract of Service A can be extended with an ignorable WS-Policy assertion that states that all request and response messages are logged by Service A and that false complaints will be prosecuted.
Answer : B
Service Consumer A sends a request message to Service A (1) after which Service A retrieves financial data from Database A (2). Service A then sends a request message with the retrieved data to Service B (3). Service B exchanges messages with Service C (4) and
Service D (5), which perform a series of calculations on the data and return the results to
- A. A utility service is created to encapsulate Database A and to assume responsibility for authenticating all access to the database by Service A and any other service consumers. Due to the mission critical requirements of Component B, the utility service further contains logic that strictly limits the amount of concurrent requests made to Database A from outside the organizational boundary. The Data Confidentiality and Data Origin Authentication patterns are applied to all message exchanged within
- B. Service Consumer A generates a private/public key pair and sends this public key and identity information to Service A. Service A generates its own private/public key pair and sends it back to Service Consumer A. Service Consumer A uses the public key of Service A to encrypt a randomly generated session key and then sign the encrypted session key with the private key. The encrypted, signed session key is sent to Service A. Now, this session key can be used for secure message-layer communication
- C. Services B, C, and D randomly generate Session Key K, and use this key to encrypt request and response messages with symmetric encryption. Session Key K is further encrypted itself asymmetrically. When each service acts as a service consumer by invoking another service, it decrypts the encrypted Session Key K and the invoked service uses the key to decrypt the encrypted response. Database A is replicated so that only the replicated version of the database can be accessed by Service A and other e
- D. The Direct Authentication pattern is applied so that when Service Consumer A submits security credentials, Service A will be able to evaluate the credentials in order to authenticate the request message. If the request message is permitted, Service A invokes the other services and accesses Database A. Database A is replicated so that only the replicated version of the database can be accessed by Service A and other external service consumers.
Answer : A
