Question 1

You are told that in this service composition architecture, all four services are exchanging invoice-related data in an XML format. The services in Service Inventory A are standardized to use a specific XML schema for invoice data. Design standards were not applied to the service contracts used in Service Inventory B, which means that each service uses a different XML schema for the same kind of data. Database A and Database
B can only accept data in the Comma Separated Value (CSV) format and therefore cannot accept XML formatted data. What steps can be taken to enable the planned data exchange between these four services?

A. The Data Model Transformation pattern can be applied so that data model transformation logic is positioned between Service A and Service B, between Service A and Service C, and between Service C and Service D . The Data Format Transformation pattern can be applied so that data format transformation logic is positioned between the Service B logic and Database A and between the Service D logic and Database B.
B. The Data Model Transformation pattern can be applied so that data model transformation logic is positioned between Service A and Service C and between Service C and Service D . The Data Format Transformation pattern can be applied so that data format transformation logic is positioned between the Service B logic and Database A and between the Service D logic and Database B.
C. The Data Model Transformation pattern can be applied so that data model transformation logic is positioned between Service A and Service C . The Protocol Bridging pattern can be applied so that protocol bridging logic is positioned between Service A and Service B and between the Service C and Service D . The Data Format Transformation pattern can be applied so that data format transformation logic is positioned between the Service B logic and Database A and between the Service D logic and Databa
D. None of the above.

Answer : A

Question 2

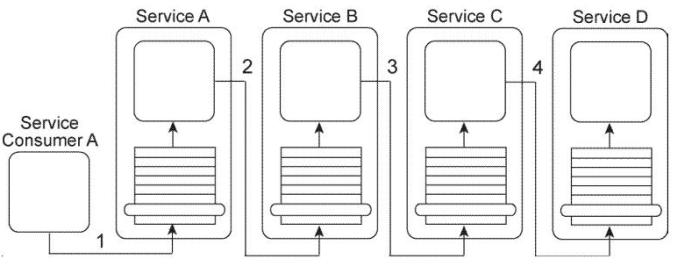

Service Consumer A sends a message to Service A (1), which then forwards the message to Service B (2). Service B forwards the message to Service C (3), which finally forwards the message to Service D (4).
Services A, B, and C each contain logic that reads the content of the message and, based on this content, determines which service to forward the message to. As a result, what is shown in the Figure is one of several possible runtime scenarios.

You are told that the current service composition architecture is having performance problems because of two specific reasons. First, too many services need to be explicitly invoked in order for the message to arrive at its destination. Secondly, because each of the intermediary services is required to read the entire message contents in order to determine where to forward the message to, it is taking too long for the overall task to complete. What steps can be taken to solve these problems without sacrificing any of the functionality that currently exists?

A. The Intermediate Routing pattern can be applied together with the Service Agent pattern in order to establish a set of service agents capable of intercepting and forwarding the message based on pre-defined routing logic. To avoid the need for service agents to read the entire message contents, the Messaging Metadata pattern can be applied so that content relevant to the routing logic is placed in the header of a message. This way, only the message header content needs to be read by the service a
B. The Intermediate Routing pattern can be applied together with the Service Agent pattern in order to establish a set of service agents capable of intercepting and forwarding the message based on pre-defined routing logic. To avoid the need for service agents to read the entire message contents, the Rules Centralization pattern can be applied so that content relevant to the routing logic is isolated into a separate Rules service. This way, service agents are only required to access the Rules servi
C. The Intermediate Routing pattern can be applied together with the Service Agent pattern in order to establish a set of service agents capable of intercepting and forwarding the message based on pre-defined routing logic. The Service Discoverability principle can be applied to improve the communications quality of message contents, which will reduce the time required by service agents to read the message contents at runtime.
D. None of the above.

Answer : A

Question 3

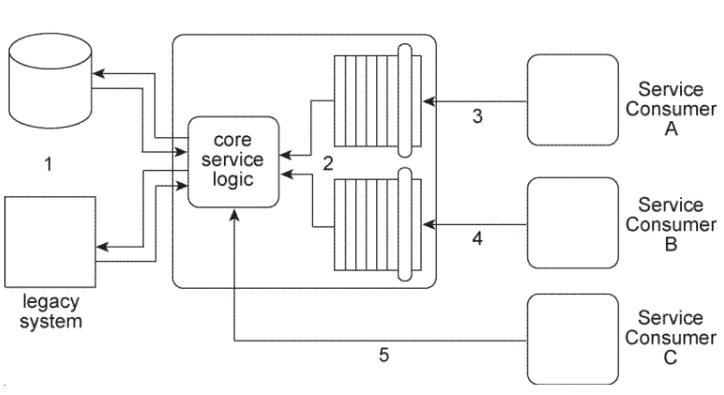

The architecture for Service A displayed in the Figure shows how the core logic of Service
A has expanded over time to connect to a database and a proprietary legacy system (1) and to support two separate service contracts (2) that are accessed by different service consumers.
The service contracts are fully decoupled from the service logic. The service logic is therefore coupled to the service contracts and to the underlying implementation resources
(the database and the legacy system).
Service A currently has three service consumers. Service Consumer A and Service
Consumer B access Service A's two service contracts (3, 4). Service Consumer C bypasses the service contracts and accesses the service logic directly (5).

You are told that the database and legacy system that are currently being used by Service
A are being replaced with different products. The two service contracts are completely decoupled from the core service logic, but there is still a concern that the introduction of the new products will cause the core service logic to behave differently than before. What steps can be taken to change the Service A architecture in preparation for the introduction of the new products so that the impact on Service Consumers A, B, and C is minimized?

A. The Service Abstraction principle can be applied to hide the implementation details from the core service logic of Service A, thereby shielding this logic from changes to the implementation. In support of this, the Service Facade pattern can be applied to position Facade components between the core service logic and Service Consumers A and B. These Facade components will be designed to regulate the behavior of Service A . The Contract Centralization pattern can be applied to force Service Consum
B. A third service contract can be added together with the application of the Contract Centralization pattern. This will force Service Consumer C to access Service A via the new service contract. The Service Facade pattern can be applied to position a Facade component between the new service contract and Service Consumer C in order to regulate the behavior of Service A . The Service Abstraction principle can be applied to hide the implementation details of Service A so that no future service consum
C. The Service Facade pattern can be applied to position Facade components between the core service logic and the two service contracts. These Facade components will be designed to regulate the behavior of Service A . The Contract Centralization pattern can also be applied to force Service Consumer C to access Service A via one of its existing service contracts.
D. None of the above.

Answer : C

Question 4

When Service A receives a message from Service Consumer A(1),the message is

A. The Legacy Wrapper pattern can be applied so that Component B is separated into a separate wrapper utility service that wraps the shared database. The Asynchronous Queuing pattern can be applied so that a messaging queue is positioned between Component A and Component C, thereby enabling communication during times when the legacy system may be unavailable or heavily accessed by other parts of the IT enterprise. The Service Facade pattern can be applied so that a Facade component is added between
B. The Legacy Wrapper pattern can be applied so that Component B is separated into a separate utility service that wraps the shared database. The Legacy Wrapper pattern can be applied again so that Component C is separated into a separate utility service that acts as a wrapper for the legacy system API. The Legacy Wrapper pattern can be applied once more to Component D so that it is separated into another utility service that provides standardized access to the file folder. The Service Facade patte
C. The Legacy Wrapper pattern can be applied so that Component B is separated into a separate utility service that wraps the shared database. The Legacy Wrapper pattern can be applied again so that Component C is separated into a separate utility service that acts as a wrapper for the legacy system API. Component D is separated into a separate service and the Event-Driven Messaging pattern is applied to establish a publisher-subscriber relationship between this new service and Component A. The inte
D. None of the above.

Answer : B

Question 5

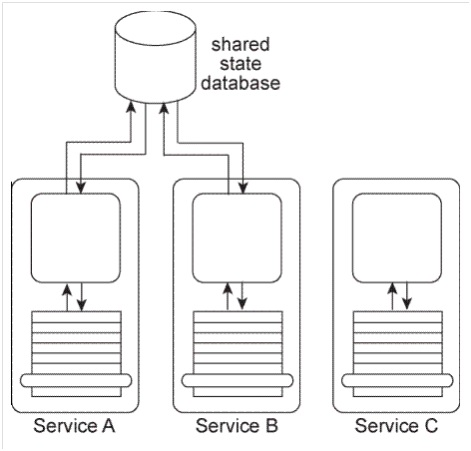

Services A, B, and C are non-agnostic task services. Service A and Service B use the same shared state database to defer their state data at runtime.
An assessment of these three services reveals that each contains some agnostic logic, but because it is bundled together with the non-agnostic logic, the agnostic logic cannot be made available for reuse.
The assessment also determines that because Service A and Service B and the shared state database are each located in physically separate environments, the remote communication required for Service A and Service B to interact with the shared state database is causing an unreasonable decrease in runtime performance.

How can the application of the Orchestration pattern improve this architecture?

A. The application of the Orchestration pattern will result in an environment whereby the State Repository and Service Data Replication patterns are naturally applied, allowing the shared state database to be replicated for Services A and B so that each task service can have its own dedicated state database. The Process Centralization pattern can also be applied to Services A and B, so that their logic is physically centralized, turning them into orchestrated task services.
B. This database can be made available as a local part of the environment so that Services A and B can avoid remote communication.
C. The application of the Orchestration pattern will result in an environment whereby the Compensating Service Transaction is naturally applied, resulting in the opportunity to create sophisticated exception logic that can be used to compensate for the performance problems caused by Services A and B having to remotely access the state database. The Process Abstraction and Service Broker patterns are also naturally applied, enabling the separation of non-agnostic logic and agnostic logic while provi
D. None of the above.
